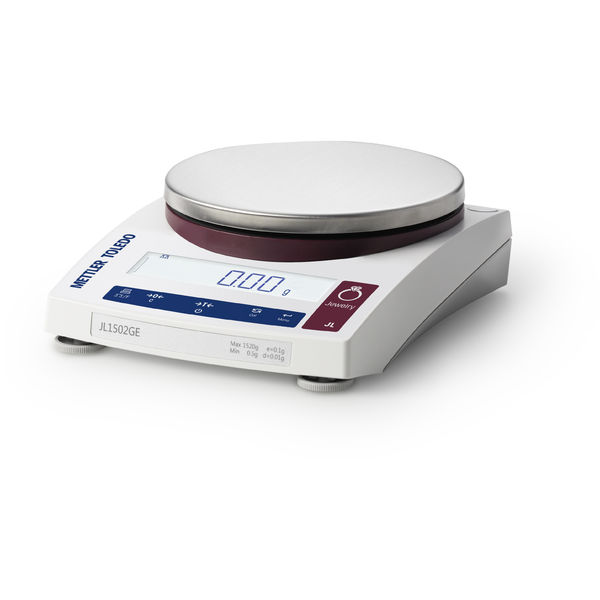

Specifications – JL1502-G Goldbalance
Trade Name JL1502-G/A,JL1502-G/M
Description
Technical data JL1502-G
Readability: 0.01 g
Max. load: 1510 g
Taring Range: 0 … 1510 g
Repeatability (sd): 0.01 g
Linearity: 0.03 g
Sensitivity temperature drift (10 °C … 30 °C): 10 ppm/ °C
Typical stabilization time: 3 s
Adjustment weight external: 1000 g (optional)
Level indicator: yes
Number of leveling screws: 4
Weighing pan: ø 160 mm
External dimensions of balance (W/D/H) in mm: 194/225/67
External dimensions of balance with auxiliary display (W/D/H) in mm: 194/286/67
External dimensions of packaging (W/D/H) in mm: 350/275/140 (0.0127 m3)
Net weight (with packaging): 1.3 kg (2.3 kg)
Net weight with auxiliary display (with packaging): 1.7 kg (3.2 kg)
